15W Anti Glare Pin Hole Fixed Round Recessed Downlight

15W Anti Glare Pin Hole Fixed Round Recessed Downlight

Convectional heat sink with passive cooling system ensures the long life of luminaires. · Classic design of reflector, Anti Glare structure offers soft and visual comfort lights for various applications, UGR<19. · Fixed / Adjustable types available. TRIAC / 0-10V / DALI Dimming optional.

Model:125-13v KD13075P

Send Inquiry

Product Description

Specification:

Power 15W Type Fixed
Beam Angle Pin Hole 15 / 24 / 36 Degree LED Brand Luminus / Bridgelux COB(Default)
Material Die-casting Aluminum LED Vf & If 36V DC, 300mA(12W) / 350mA(15W)
Surface Finishes Spray Painting Color Temperature 2700K / 3000K / 4000K
Color Matt White / Matt Black CRI 80Ra / 90Ra(Standard) / 95Ra
Optics Lens Input Voltage 220-240V AC, 50Hz
Accessory Honeycomb Louver Dimming On-Off / TRIAC / 0-10V / DALI
IP Rate IP20 Lighting Tolerance 2 SDCM / 3 SDCM
Dimension Φ87 x 96mm Cut-out Φ75mm

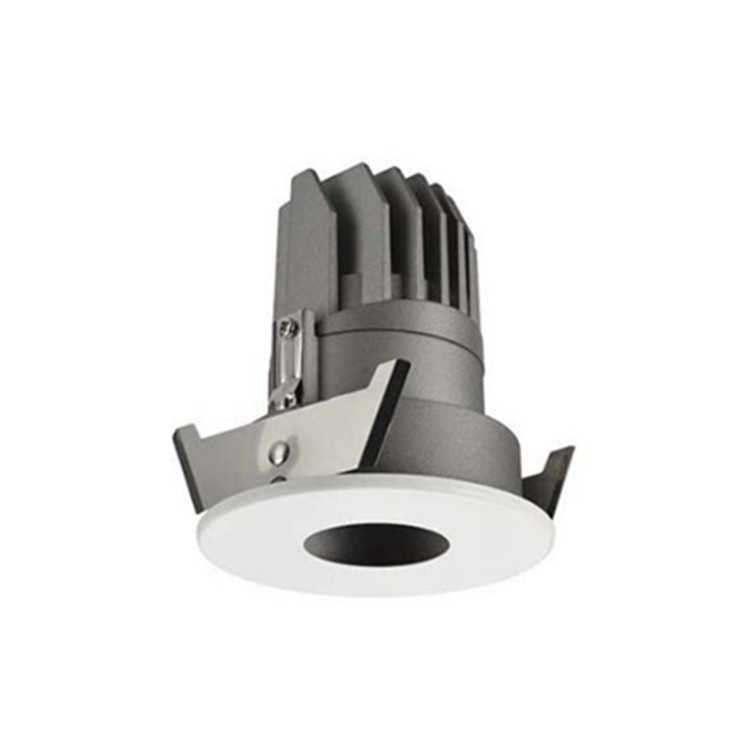

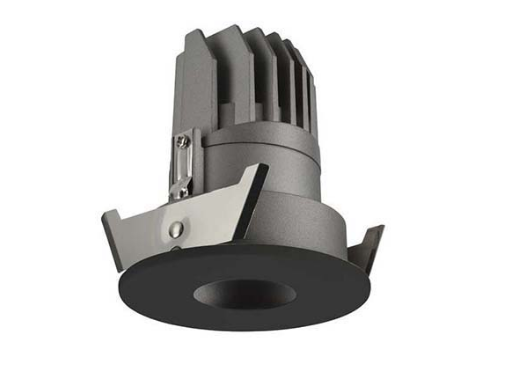

Picture:

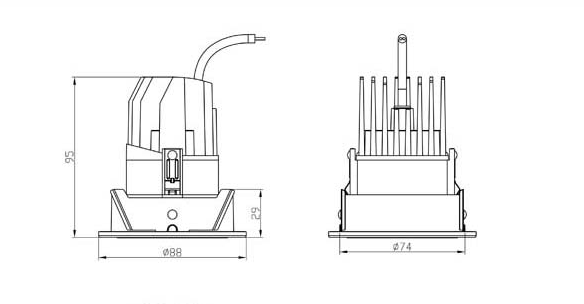

Drawing:
