8W Square Trimess Anti glare Adjustable Recessed Hotel Downlight

8W Square Trimess Anti glare Adjustable Recessed Hotel Downlight

1.Power from 6W to 15W, etc. 2.Round and heat dissipation design ensures the long life time of lamps. 3.External drive, smooth and beautiful design. 4.Adopt American brand COB (Bridgelux)

Model:125-1V332075SL

Send Inquiry

PDF Download

Product Description

Specification:

Power

8W Chip Brand Bridgelux
Beam angle 15°/24°/36°/60° CCT 2700K/3000K/4000K
Material Die- casting aluminum Lumens 550.83LM
Treatment Matte material CRI 90
Colour Black/White Output current 180mA
IP Class IP20 Input voltage 220-240VAC 50/60Hz
Certification CE PF >0.5
Life time 25000H Dimmable Non-Dimmable
Cut hole 75*75mm Output voltage 33-39V
Size Φ71*93mm Warranty 3 Years

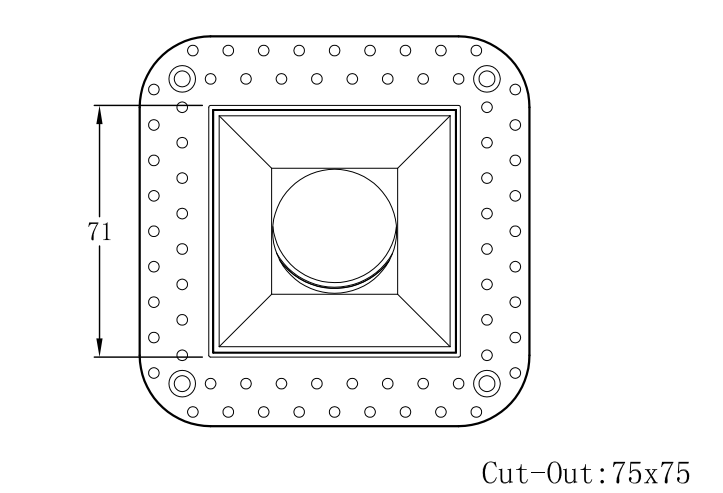

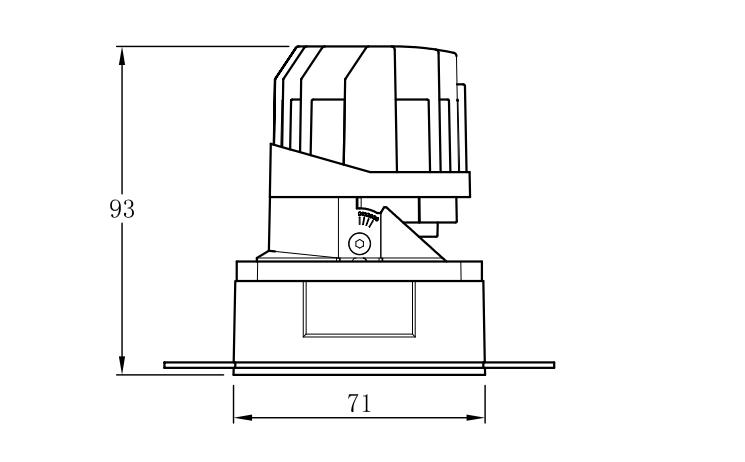

Diagram Picture:

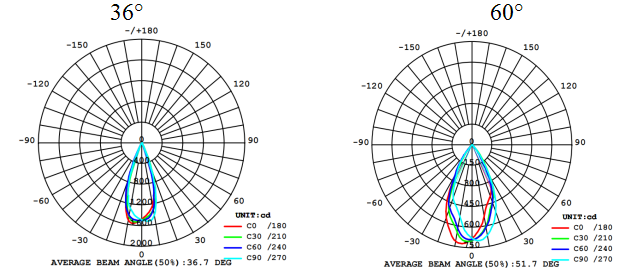

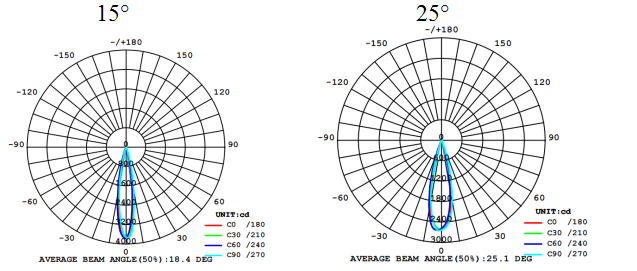

Distribution Curve Flux
