Home > Products > Recessed downlight > led recessed down light > Double-Head 30W Anti Glare Adjustable Square UGR<19 LED Recessed Down Light
Double-Head 30W Anti Glare Adjustable Square UGR<19 LED Recessed Down Light

Double-Head 30W Anti Glare Adjustable Square UGR<19 LED Recessed Down Light

Convectional heat sink with passive cooling system ensures the long life of luminaires. · Classic design of reflector, Anti Glare structure offers soft and visual comfort lights for various applications, UGR<19. · Fixed / Adjustable types available. TRIAC / 0-10V / DALI Dimming optional.

Model:125-1v3KG012090

Send Inquiry

Product Description

Specification:

System Power 15W X 2 Type Adjustable
Beam Angle 15 / 24 / 36 / 60 Degree LED Brand Luminus / Bridgelux COB(Default)
Material Die-casting Aluminum LED Vf & If 36V DC, 300mA(12W) / 350mA(15W)
Surface Finishes Spray Painting Color Temperature 2700K / 3000K / 4000K
Color Matt White / Matt Black CRI 80Ra / 90Ra(Standard) / 95Ra
Optics Aluminum Reflector Input Voltage 220-240V AC, 50Hz
Accessory Honeycomb Louver Dimming On-Off / TRIAC / 0-10V / DALI
IP Rate IP20 Lighting Tolerance 2 SDCM / 3 SDCM
Dimension 190 x 102 x 96mm Cut-out 180 x 90mm

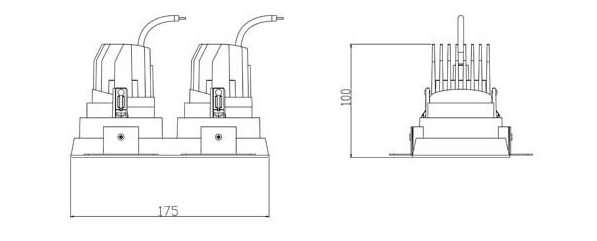

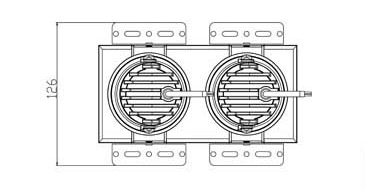

Drawing
