IP54 8W Tiltable Round 68 cut hole Bridgelux COB 180MA 3000K LED Recessed Downlight

IP54 8W Tiltable Round 68 cut hole Bridgelux COB 180MA 3000K LED Recessed Downlight

◆ Power from 6W to 15W, etc. ◆ Round and heat dissipation design ensures the long service life of lamps. ◆ External driver, smooth and beautiful design. ◆ Adopt American brand COB (Bridgelux).

Model:125-1V332068RES

Send Inquiry

PDF Download

Product Description

Specification:

Power 8W Chip Brand Bridgelux
Beam angle 15°/24°/36°/60° CCT 2700K/3000K/3500K/4000K
Material Die- casting aluminum Lumens 507LM/475LM/488LM/506LM
Treatment Matte material CRI 90

Colour

Black/White Driver Lifud-Power(Remote driver)
IP Class IP54 Input voltage 220-240VAC 50/60Hz
Certification CE PF >0.5
Life time 25000H Dimmable On-off/ TraicDimming
Cut hole Φ68mm Output voltage 33-42V
Size Φ75*52mm Warranty 3 Years

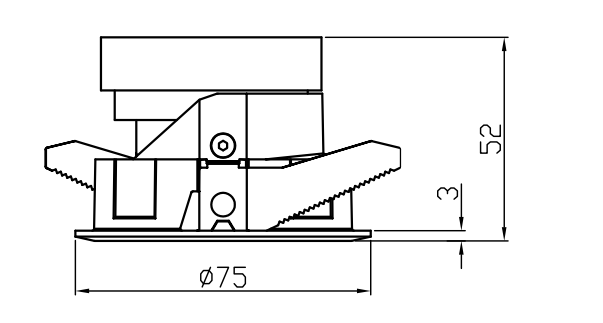

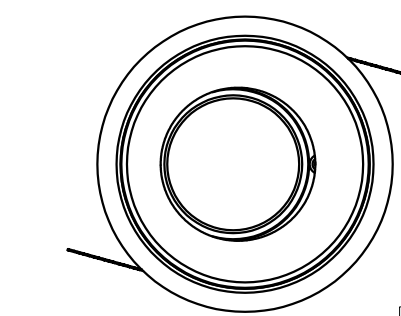

Drawing:

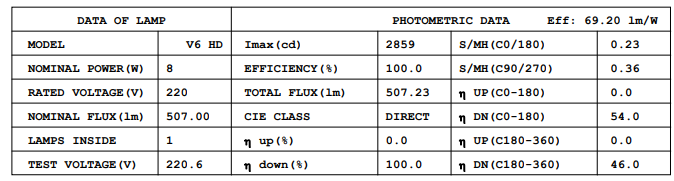

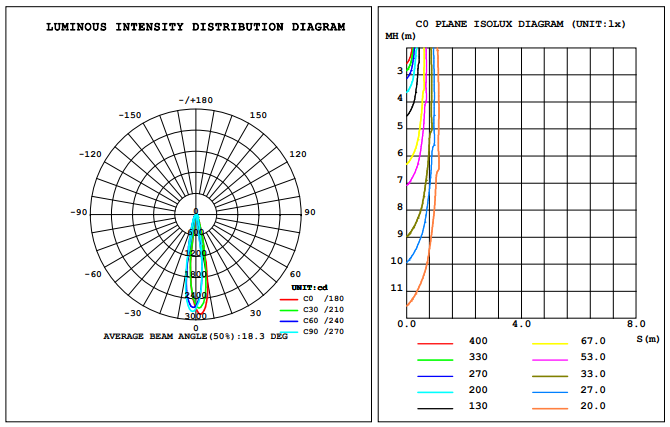

Distribution curve flux
