Mini Double Head 2*3W White Aluminum Dimmable Recessed Downlight

Mini Double Head 2*3W White Aluminum Dimmable Recessed Downlight

◆ Good glare control, UGR<19 ◆ 1/2/5/10/15 Head can be used for different applications ◆ 2700K/3000K/4000k, Ra90 provide high-quality light source. ◆ Kuobai, matte black optional.

Model:125-13vKG710237

Send Inquiry

Product Description

Specification:

Beam angle 15°/30°/45° LED Brand OSRAM
Material Die-casting aluminum CCT 2700K/3000K/4000K
Finish Powder Coating Luminous flux 300LM
Color white/ black CRI 80/90
IP Rating IP20 Driver Brand KA(External Driver)
Certificate CE Input voltage 220-240VAC 50/60Hz
Life time 25000H PF >0.5
Cut-out 68*37mm Dimmable On-off/ Traic Dimming
Dimension  size 75*45*H39mm Output voltage 5.6-10.5V
Optics Reflector  Output current 700mA

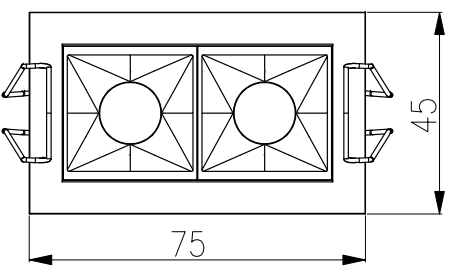

Drawing:

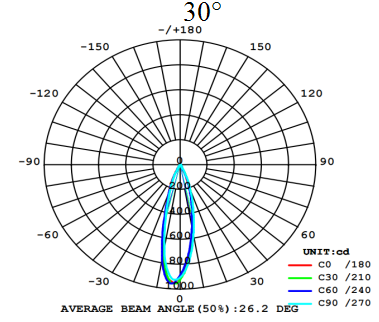

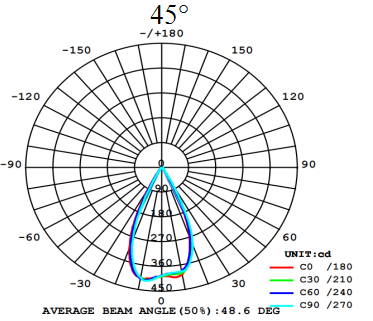

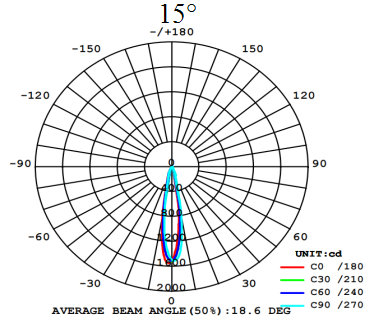

Photometric data:
